Ride Ons & Standers

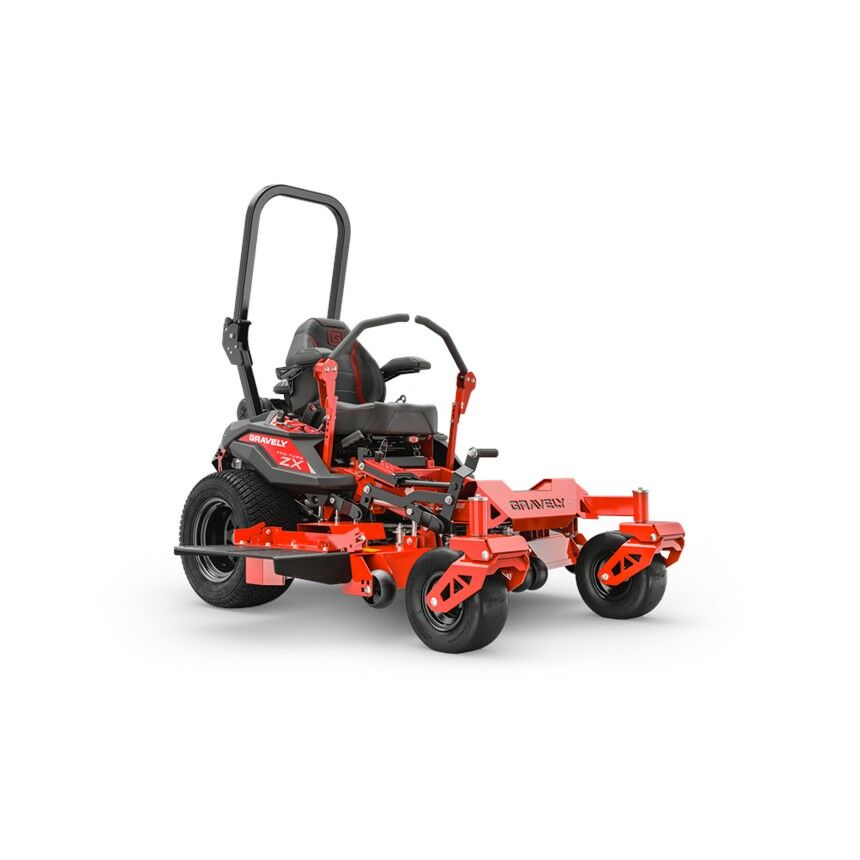

Gravely Pro-Turn ZX 52

$22,499.00

• The automotive-style tubular frame is unique to the mowing industry and increases durability by withstanding force from any direction. This high-strength, premium frame is positioned with a lower centre of gravity to improve stability while mowing on slopes.
• The new X-FACTOR® 3 deck, is a completely redesigned powerhouse engineered for superior performance. Crafted from robust 7-gauge steel, it withstands the harshest punishment yards and their obstacles can deliver. The innovative sloped front end lifts grass earlier, ensuring a better cut, while the reinforced spindle mounts safeguard blade operation. With enhanced grass dispersion capabilities and a large discharge opening, this deck guarantees impeccable results and years of reliable service.
• ZT-3200® Transaxles are commercial grade, heavy duty, can handle high speeds and are serviceable for a longer life span.
• Suspension forks absorb impact from tough terrain enabling a smoother ride.
• 15 cutting heights - A foot operated deck lift system makes cutting height adjustments a breeze. Adjust the deck in 13 mm increments by dropping the magnetic pin into the clearly visible height adjustment slots ranging from 38 mm to 127 mm.
• ROPS comes standard for increased operator safety
• Optional Accessories: Bagger - 89100800, Hitch Kit - 79108500
• Machine Warranty - 4 Years or 750 Hours Limited

• Description

  More Information

  Features

  Electric Start - Mowing is even easier with the electric start - turn the key & start mowing.

  Hour Meter - Keep an eye on operator hours for servicing purposes

  Fuel Level Indicator - Means you can view your fuel level without removing the cap

  ROPS - Roll Over Protection System increases safety

  Specifications

  Engine Make - Kawasaki®

  Engine Model - Kawasaki® FX 691V

  Displacement - 726 CC

  Fuel Tank Capacity - 19.3 L

  Engine Capacity - 22 HP

  Cutting Width - 52"

  Cutting Height Range - 38.1 MM - 127 MM

  Cutting Positions Spec - 15

  Drive System - Hydro-Gear® ZT-3200 Transaxle

  Forward Speed - 0 - 13.7 KM/H

  Reverse Speed - 0 - 6.4 KM/H

  Seat Type - High back comfort seat with suspension and padded arm rests

  Deck Lift - Foot Operated

  Front Axle Type - Suspension Caster Fork

  Deck Fabrication - Fabricated X-Factor® 3

  Deck Engagement - Electric Clutch Ogura® GT 1.5

  Spindle Housing - Forged Aluminum

  Number of Spindles - 3

  Spindle Housing Material Spec - Forged Aluminum

  Spindle Shaft Spec - 10 GA Steel

  Spindle Bearings Spec - Ball Bearing

  Front Wheels - Smooth Pneumatic

  Rear Wheels - Turf

  Front Tyres Size - 13 IN X 6.5 IN - 6 IN

  Rear Tyres Size - 22 IN X 10.5 IN - 12 IN

  Weight - 422.2kg

  Product Dimensions (W x H x L) - 1709MM (with Chute) X 1829MM (with ROPS extended) X
